How to Install a Heavy Stone or Iron Gazebo: Foundations, Anchoring & Safety (Gazebo Foundation Guide)

Installing a 3–20 ton structure is not the same as installing a tent.

It’s not patio furniture.
It’s a building.

If you respect the physics, the process is simple.

If you ignore the gazebo foundation, it will fail.

Don’t panic.
Follow the steps.

Why the Gazebo Foundation Is Everything

A heavy permanent garden gazebo concentrates enormous weight into small points.

Each column can carry 500kg–3000kg.

Place that on dirt or thin pavers?

It sinks.

It tilts.

It cracks.

The “Gazebo Weights” Myth (Let’s Be Honest)

Search “gazebo weights” and you’ll see sandbags and plastic barrels.

That works for a 40kg canopy.

It is a joke for a 3+ ton structure.

Forget cast iron gazebo weights.

You need a Reinforced Concrete Pad.

Typically:

• 20–30 cm thick
• Reinforced with rebar grid
• Compacted sub-base
• Fully cured before installation

Anything less is gambling with gravity.

Phase 1: The Gazebo Foundation (The Most Important Step)

This is 70% of the job.

If the foundation is perfect, installing a gazebo becomes straightforward.

Step 1: Soil Inspection

Before pouring concrete:

• Check soil type
• Ensure proper drainage
• Remove organic material
• Compact subgrade

Soft soil = future sinking.

Safety Rule: Never install directly on dirt.

Step 2: Excavation

Excavate beyond the gazebo footprint.

Typical depth:

• 20–30 cm concrete
• 10–15 cm compacted gravel base

Level everything.

Check twice.

Step 3: Rebar Reinforcement

Use a rebar grid:

• 10–12mm rebar
• 15–20cm spacing
• Tied intersections

This prevents cracking under point loads.

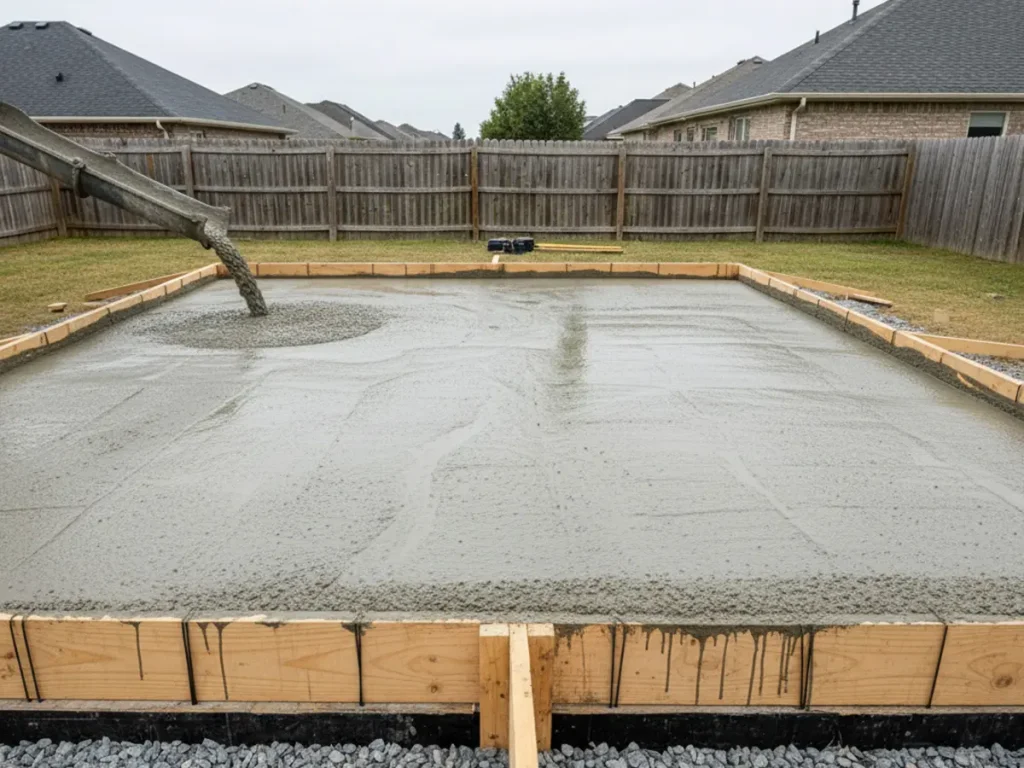

Step 4: Pouring the Concrete Pad

Use structural-grade concrete.

Vibrate to remove air pockets.

Screed and level precisely.

The #1 Mistake: Pouring concrete after the gazebo arrives.

Too late.

Concrete needs:

• Minimum 7 days before light loading
• 28 days for full cure

Plan ahead.

Step 5: Level Verification

Before installation:

• Laser level check
• Confirm pad is perfectly flat
• Confirm anchor positions

A crooked pad = permanent tilt.

Phase 2: Unloading the Gazebo Safely

These components are heavy.

You cannot lift them by hand.

Ever.

Tools Checklist (Pre-Installation)

• Crane (preferred for large units)
• Forklift
• Nylon lifting straps
• Heavy-duty gloves
• Safety helmets
• Laser level
• Stainless Steel Expansion Bolts
• High-strength Epoxy
• Torque wrench

If you don’t have lifting equipment, stop.

Unloading Logic

1. Inspect crates.
2. Confirm component list.
3. Identify numbered parts.
4. Lift vertically.
5. Never drag stone across ground.

For a full breakdown of the total project cost (including shipping), see our [2026 Price Guide].

Phase 3: Installation Logic – Iron vs Stone

Different materials.

Different physics.

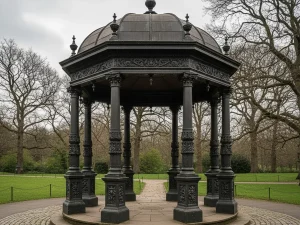

Installing a Cast Iron Gazebo

Assembling a Cast Iron Gazebo requires a crane.

Iron structures bolt together.

They are mechanical systems.

Step-by-Step: Iron Installation

1. Position base plates over anchor locations.
2. Drill into cured concrete pad.
3. Insert Stainless Steel Expansion Bolts.
4. Tighten to specified torque.
5. Lift and attach beams.
6. Secure roof frame.

Why Expansion Bolts Matter

They resist:

• Wind uplift
• Lateral forces
• Seismic movement

Iron must be anchored.

Gravity alone is not enough.

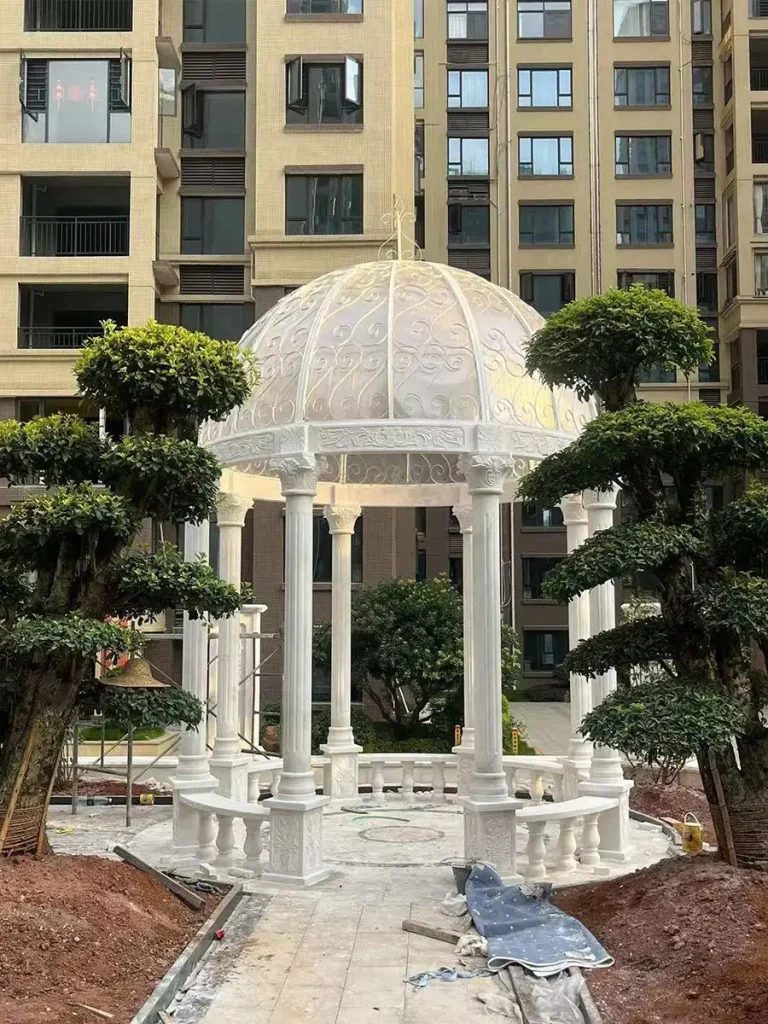

Installing a Marble Gazebo

Installing a [Marble Gazebo] requires epoxy.

Stone structures stack.

But they are not just stacked.

They are bonded and pinned.

Step-by-Step: Stone Installation

1. Dry position columns.
2. Check alignment.
3. Apply high-strength construction Epoxy.
4. Insert stainless dowel pins.
5. Lower next component carefully.
6. Clean excess adhesive immediately.

Why Epoxy Is Critical

Without epoxy:

• Micro-movement occurs.
• Water penetrates joints.
• Freeze-thaw causes cracking.

With epoxy:

• Load transfers evenly.
• Structure behaves monolithically.
• Longevity increases dramatically.

This epoxy method is essential for our [Hand-Carved Marble Gazebos].

Anti-Sinking Engineering

Each column creates a point load.

Point load + soft base = settlement.

Settlement = tilt.

Tilt = stress cracks.

This is why:

• No thin pavers.
• No floating deck.
• No uncompacted soil.

Only a properly engineered concrete pad for gazebo.

Phase 4: The Yun Advantage – Installation Without Guesswork

At Yun Sculpture, we eliminate confusion before shipment.

The Trial Assembly (LEGO for Giants)

Every gazebo is pre-assembled in our factory.

Completely.

Then we:

• Mark each part (A1, A2, B1…)
• Create an installation map
• Photograph every connection

When it arrives onsite?

It’s like LEGO for giants.

Your contractor follows the numbering system.

No guesswork.

No improvisation.

Why This Matters

Without trial assembly:

• Holes may misalign.
• Tolerances compound.
• Installation delays happen.

With our system:

Any local general contractor can do it.

Our installation guide is so detailed that complexity disappears.

Common Installation Mistakes (Avoid These)

1. Installing Before Concrete Cures

Result: Hairline cracks and long-term settlement.

2. Skipping Epoxy on Stone

Result: Joint separation over time.

3. Underestimating Equipment Needs

Result: Unsafe lifting attempts.

Never lift marble columns manually.

4. Installing on Pavers

Pavers are decorative.

They are not structural.

Wind & Safety Considerations

A gazebo acts like a sail.

Wind uplift can exceed 500kg per column.

Iron units must be bolted.

Stone units must be bonded and pinned.

Safety Warning: Never leave roof components unsecured overnight.

Installing a Gazebo: The Calm Engineer’s Mindset

It’s heavy.

But it’s just physics.

Load transfers from:

Roof → Beams → Columns → Foundation → Soil.

If each layer is correct, the structure stands 100+ years.

If one layer fails, everything fails.

Respect the chain.

Permit & Drawings Support

Need foundation drawings for approval?

We provide:

• Anchor bolt layout
• Pad thickness specs
• Structural loading data
• Installation sequence diagrams

Quick Reference Summary

For Iron Gazebos

• Reinforced pad (20–30cm)
• Stainless Steel Expansion Bolts
• Crane-assisted lifting
• Torque verification

For Marble Gazebos

• Reinforced pad
• Dowels + structural Epoxy
• Precise leveling
• Clean bonding joints

Ready to Build?

Installing a heavy gazebo is not difficult.

It just requires discipline.

At Yun Sculpture, we prepare everything in advance:

• Trial assembly
• Numbered system
• Installation drawings
• Engineering support

Ready to build?

We offer a Free Installation Blueprint (PDF) and foundation specifications tailored to your model.
